Traits

Technical specification of the module that shows the traits a taker earned.

Docs: Traits. | Design: Figma

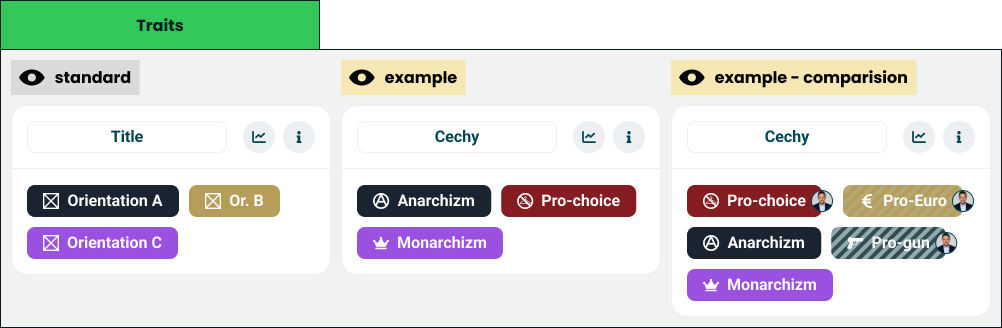

Traits, alone and in comparison

Kind

Front-end

Scope

One result module: a module wrapper around a set of pills, one per earned trait. It is the only result module with no bar in it, because a trait is held or not held and has no score to draw. It holds no state and decides nothing about who earned what.

Not covered here:

  • Whether a trait is earned - scoring. The module receives the traits that already are.
  • The card frame and its two buttons - the module wrapper spec.
  • The mid-quiz card that announces a trait - the checkpoints.

Data

Input Data Meaning Rules
Title Text The card's name Optional, as in the wrapper
Traits A list of orientations Every trait the quiz defines In the quiz's order
Earned Which of those traits the taker earned The taker's result May be none
Comparison The other party, and which traits they earned A friend's traits laid over the taker's Optional
Statistics action, info action Present or absent The wrapper's two buttons Optional, independent

A trait is an orientation: a name, an icon and a colour, all author-supplied and untrusted. The other party is an orientation too, their avatar being the image.

The quiz's traits are configuration and who earned what is a result, so the two arrive separately. The order is the quiz's own. It means nothing - every trait is equally earned - but it is stable, so the same result always draws the same way, with or without a comparison. A trait nobody earned is not drawn.

Interface

Direction Name Shape Notes
In Everything in Data - Passed in by the result screen
Out Statistics requested An event with no payload Passed through from the wrapper
Out Info requested An event with no payload Passed through from the wrapper

Behaviour

Pills

Case Behaviour
A trait One pill: the trait's icon, then its name, on the trait's colour
Several traits Pills flow in a row and wrap onto further rows, in the order given
A trait without an icon The pill shows the name alone
A pill pressed Nothing happens. Pills are not interactive

Comparison

With a comparison, the set drawn is every trait either party earned, in the quiz's order.

Case Behaviour
Both earned it A solid pill carrying the other party's avatar on its corner
Only the taker earned it A solid pill with no avatar
Only the other party earned it A hatched pill carrying the other party's avatar
The other party earned nothing The taker's pills, all without an avatar

The hatching is the same pattern the universal axis uses for comparison, so "hatched means theirs" holds across the whole screen.

Empty

Case Behaviour
No traits, no comparison The card is drawn with one line of text saying no traits were earned
No traits for either party The same line
The taker earned none, the other party did The other party's pills, all hatched

An empty set is a real outcome of a strict rule, so the card says so instead of showing a blank body that reads as broken.

Rules and constraints

  • A set, not a ranking. The module never sorts, never numbers and never emphasises one pill over another.
  • One size of pill. A pill does not grow or shrink with the number of traits.
  • No score. A trait earned by a hair looks the same as one earned outright; the module has no input that could say otherwise.
  • The module never hides itself. Leaving it out of a quiz with no traits configured is the result screen's decision.

Invalid and edge input

Input Behaviour
Trait name longer than the card The pill is as wide as the card at most; the name is truncated to one line and stays complete for assistive technology
Trait without a name Not drawn
Trait without a colour The neutral fallback colour
Trait with a light colour The label stays readable: dark text on a light pill, light text on a dark one
The same trait listed twice Drawn once
Other party without an avatar A neutral avatar placeholder in the same place
Comparison that names no earned traits Treated as the other party having earned nothing
An earned trait the quiz does not define Ignored

Nothing here throws. Trait names are the sharpest words an author writes, and a bad one must not take the card down - whether it should be shown at all is moderation's question, not this module's.

Non-functional

Rendering contexts

The result screen, comparison mode and the generated result image. In the image the caller passes no actions.

Accessibility

  • The pills are a list, and each item is its trait's name.
  • In comparison each item also says whose it is in words - shared with the other party, or only theirs. Hatching and the avatar are never the only carriers.
  • The trait icon is decorative.
  • The empty line is ordinary text, read like any other.

Dependencies

Build order: step 1. Needs the module wrapper, which is built. It does not use the universal axis, and it can be built alongside the single axis chart, the double axis chart and the header.

Relies on:

Relied on by nothing in this folder.
