Single axis chart¶
Technical specification of the module that shows one orientation as one bar.
Docs: Single axis chart. | Design: Figma
Kind¶
Front-end
Scope¶
One result module: a module wrapper whose title is the orientation and whose body is a single one-sided universal axis. It holds no state and computes no score.
Not covered here:
- How the bar draws a value, a marker or a comparison - the universal axis spec.
- The card frame and its two buttons - the module wrapper spec.
- Which orientation the module points at - quiz configuration.
Data¶
| Input | Data | Meaning | Rules |
|---|---|---|---|
| Orientation | Name, image, colour | What the card is about | Required. Image and colour are optional |
| Value | Number, 0-100 | The orientation's score | Optional. Absent means the quiz has no answers behind this orientation |
| Marker | Position 0-100, or off | The reference line on the bar | Defaults to 50 |
| Comparison | Orientation and value | The other party on the same bar | Optional |
| Statistics action, info action | Present or absent | The wrapper's two buttons | Optional, independent |
The scale is absolute: the value is drawn as given, never relative to another module on the screen.
Interface¶
| Direction | Name | Shape | Notes |
|---|---|---|---|
| In | Everything in Data | - | Passed in by the result screen |
| Out | Statistics requested | An event with no payload | Passed through from the wrapper |
| Out | Info requested | An event with no payload | Passed through from the wrapper |

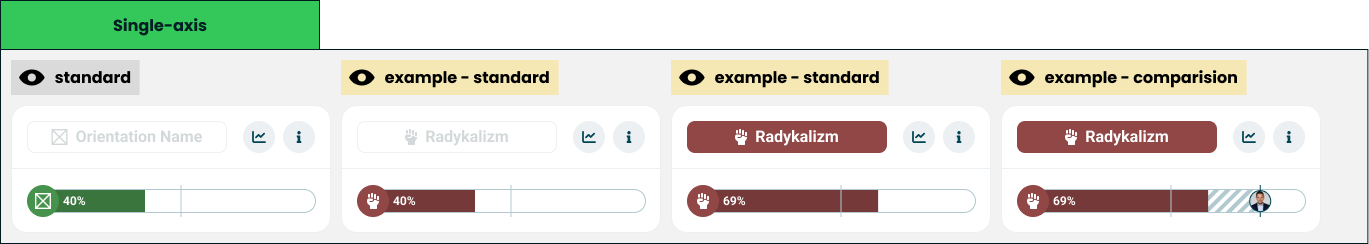

Behaviour¶
Title¶
The title is a chip holding the orientation's icon and name, placed in the wrapper's title slot as a component title.
| Case | Behaviour |
|---|---|
| Value at or above the marker position | Emphasised: the chip is filled with the orientation's colour |
| Value below the marker position | Quiet: the chip is outlined and its content muted |
| Marker switched off | The emphasis line stays at 50 |
| Value absent | Quiet |
| Orientation without an image | The chip shows the name alone |
The chip is never interactive.
Bar¶
| Case | Behaviour |
|---|---|
| Value present | A one-sided bar filled from the start cap, the orientation's image on the cap |
| Value is zero | The cap and an unfilled track, with no number |
| Value absent | An empty track with no cap, as the universal axis draws "no orientation" |
| Comparison present | Passed to the bar unchanged; the bar draws the band and the other party's image |
Labels under the bar are off: the title already names the orientation.
Rules and constraints¶
- The module adds nothing to the bar's own rules. Value placement, rounding, the marker and the comparison band behave exactly as the universal axis specifies.
- An empty track is a state, not an error. The card is still drawn for an orientation with no value.
- The module never hides itself. Leaving it out is the result screen's decision.
Invalid and edge input¶
| Input | Behaviour |
|---|---|
| Value outside 0-100 | Clamped by the bar. The title's emphasis uses the clamped value |
| Value not a number | Treated as absent |
| Orientation name missing or empty | The chip shows the image alone. With neither, the wrapper gets no title |
| Orientation name longer than the title slot | Truncated by the wrapper, complete for assistive technology |
| Orientation without a colour | The neutral fallback, on the chip and on the bar |
| Marker outside 0-100 | Clamped; the emphasis line moves with it |
Nothing here throws.
Non-functional¶
Rendering contexts¶
The result screen, comparison mode and the generated result image. In the image the caller passes no actions.
Accessibility¶
- The card is named after the orientation, through the accessible name the wrapper takes for a component title.
- The bar announces the orientation, its value and the comparison value, as the universal axis specifies.
- Emphasis is never the only signal: the number on the bar says the same thing.
Dependencies¶
Build order: step 1. Needs the universal axis and the module wrapper, both built. Nothing else in this folder has to exist first, and it can be built alongside the double axis chart, traits and the header.
Relies on:
- Single axis chart doc - the idea this implements.
- Universal axis and module wrapper.
Relied on by nothing in this folder. The horizontal bar chart and the archetype use the same one-sided bar, but compose the universal axis directly.
