Header¶
Technical specification of the top of the result: one orientation, its confidence, and the two tabs.
Kind¶
Front-end
Scope¶
The block at the top of the result screen: an avatar in a confidence ring, the orientation's name, the confidence, two optional author-written extras, and the tabs that switch between the taker's result and comparison. Unlike the other result modules it does not sit in a module wrapper and has no statistics or info button.
It also defines the match bands - the three ranges a confidence or a match falls into. The archetype uses the same bands.
Not covered here:
- Which orientation leads and how confident the result is - scoring. The header receives both.
- What each tab shows - the result screen, and comparison modes.
- The identity block of the generated image - the short results card.
- Whether an author's slogan or link is acceptable - moderation.
Data¶
| Input | Data | Meaning | Rules |
|---|---|---|---|
| Orientation | Name and image | The orientation leading the group the author pointed the header at | Optional. Absent means no match |
| Confidence | Number, 0-100 | How strongly the answers support this result | Optional |
| Slogan | Text | An author-written line for this orientation | Optional |
| Link | A label and an address | Somewhere the author sends the taker | Optional |
| Active tab | "Your results" or "Comparison" | Which tab is selected | Required |
Name, image, slogan and link are author-supplied and untrusted.
Match bands¶
| Band | Range | Meaning |
|---|---|---|
| No match | Below 50 | Nothing clears the bar |
| Partial match | From 50, below 80 | A result, held loosely |
| Match | 80 and above | A result |
The bands are decided on the exact value, not the rounded one. Each band has its own colour, taken from the palette and never from the orientation.
Interface¶
| Direction | Name | Shape | Notes |
|---|---|---|---|
| In | Everything in Data | - | Passed in by the result screen |
| Out | Tab selected | The tab that was chosen | The header does not switch content itself |

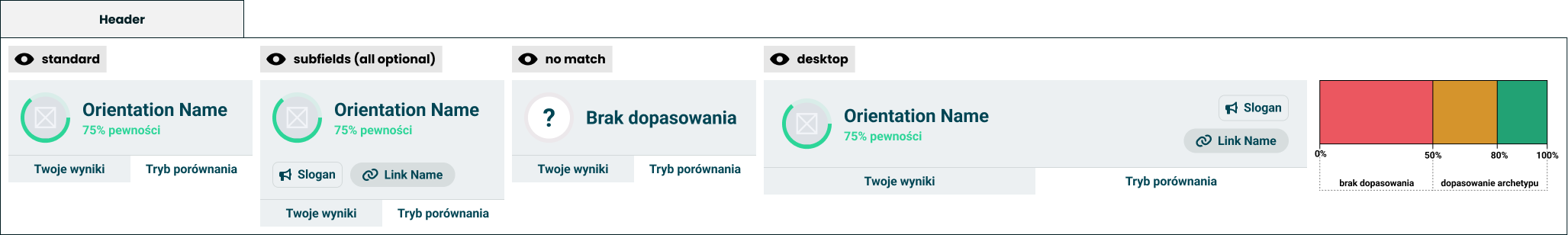

Behaviour¶
Result¶
| Case | Behaviour |
|---|---|
| Match or partial match | The orientation's image inside a ring, its name, and the confidence written as a rounded percentage |
| Ring | An arc as long as the confidence, in the band's colour |
| Confidence text | In the band's colour |
| No match | A question mark in place of the image, no ring, the "no match" wording in place of the name, and no confidence |
Extras¶
| Case | Behaviour |
|---|---|
| Slogan present | A labelled chip. Not interactive |
| Link present | A button showing the label, which opens the address in a new tab |
| Neither | The row they share is not drawn |
| No match | Neither is drawn, whatever was passed. They belong to an orientation, and there is none |
Tabs¶
| Case | Behaviour |
|---|---|
| Always | Two tabs of equal width under the result: "Your results", then "Comparison" |
| Active tab | Marked as selected |
| A tab pressed | "Tab selected" is raised. The header waits for the new active tab to be passed in |
Layout¶
| Case | Behaviour |
|---|---|
| Narrow | Everything stacks: result, then extras, then tabs |
| Wide | The extras move to the end of the result's row, slogan above link. Tabs stay underneath, across the full width |
The content is the same in both. Which layout applies depends on the width the header is given.
Rules and constraints¶
- No match is an answer. It is drawn as deliberately as a match, never as an error or an empty state.
- The header never names the least bad option. Below 50 the orientation's name and image are not shown, even though they were passed.
- One orientation. The header has no room for a runner-up or a split result.
- Confidence is not a score. It is always written with its word, never as a bare percentage that could be read as a match.
Invalid and edge input¶
| Input | Behaviour |
|---|---|
| Orientation absent | No match |
| Confidence absent or not a number | No match |
| Confidence outside 0-100 | Clamped |
| Orientation without an image | A neutral placeholder inside the ring |
| Name longer than the room | Wraps onto a second line, then is truncated; complete for assistive technology |
| Slogan or link label longer than the room | Truncated to one line; complete for assistive technology |
| Link with an empty label | The address is shown as the label |
| Link whose address is not a web address | The link is not drawn |
| Slogan with line breaks | Collapsed to one line |
Nothing here throws. The slogan and the link are someone else's words in the product's most trusted spot, so a malformed one is dropped rather than shown broken.
Non-functional¶
Rendering contexts¶
The result screen only, at any width.
Accessibility¶
- The name is the main heading of the result screen.
- The ring is decorative. The confidence is carried by its text.
- A band is never carried by colour alone: no match changes the wording, and a partial match differs from a match by its number.
- The tabs are a tab list, operable from the keyboard, with the selected tab announced.
- The link says that it opens in a new tab.
Dependencies¶
Build order: step 1. Needs nothing in this folder. It can be built alongside the single axis chart, the double axis chart and traits.
Relies on:
- Header doc - the idea this implements.
Relied on by:
- Archetype - uses the match bands, so this comes first.
