Double axis chart

Technical specification of the module that shows two opposing orientations on one bar.

Docs: Double axis chart. | Design: Figma

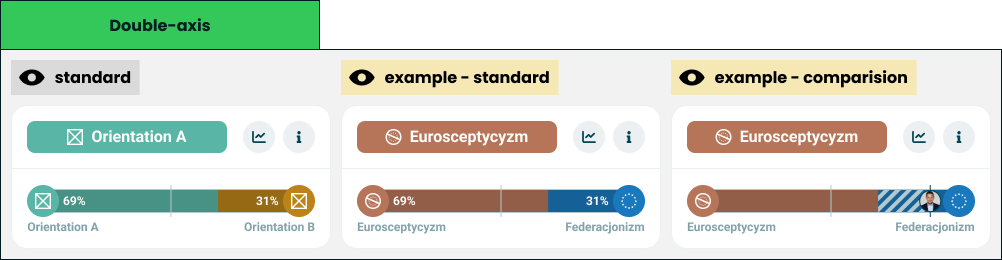

Double axis states and examples

Kind

Front-end

Scope

One result module: a module wrapper whose title names the leading side and whose body is a single double-sided universal axis with both poles labelled. It holds no state and computes no score.

It also defines the lead rule - which side of a pair is the winner, and when there is none. The multi axis chart uses the same rule.

Not covered here:

  • How the bar draws two values, a marker or a comparison - the universal axis spec.
  • The card frame and its two buttons - the module wrapper spec.
  • Which two orientations are paired - quiz configuration. The pairing is the author's.

Data

Input Data Meaning Rules
Start entry Orientation and value The pole on the left cap Required
End entry Orientation and value The pole on the right cap Required
Marker Position 0-100, or off The reference line on the bar Defaults to 50
Comparison Orientation and value The other party on the same bar Optional
Statistics action, info action Present or absent The wrapper's two buttons Optional, independent

An orientation carries a name, an image and a colour, as in the universal axis.

The two values are drawn as given. The module does not make them add up to a hundred: a pair of 47 and 31 leaves a gap in the middle of the bar.

Interface

Direction Name Shape Notes
In Everything in Data - Passed in by the result screen
Out Statistics requested An event with no payload Passed through from the wrapper
Out Info requested An event with no payload Passed through from the wrapper

Behaviour

Lead

The lead is decided on the values as the taker sees them - rounded to whole numbers - so the title can never contradict the bar.

Case Lead
One displayed value is higher That side
Both displayed values are equal, including both zero None. It is a tie
One value absent The side that has a value, if it is above zero
Both values absent None

Title

Case Behaviour
There is a lead A chip with the leading orientation's icon and name, filled with its colour
Tie A neutral chip naming both poles, start first, with no icon and no colour
Tie, title slot narrower than the tie breakpoint The chip shows the word for a tie instead of the names
Tie, title slot at or above the breakpoint, names too long for it Each name is truncated on its own, so both poles and the separator stay visible
Tie, one or both pole names missing The chip shows the word for a tie, at any width
Leading orientation without an image The chip shows the name alone

The title names the side the taker landed on, not the axis. The chip is never interactive.

A tie title never shows one pole alone. The title slot is a single line, and two names cut to the first one would read as a lead that the bar under it contradicts. Both poles stay named under their caps, so the short form loses nothing.

The tie breakpoint is a fixed width of the title slot, tuned once for a typical pair of names. It depends on the width the title is given, not on the viewport, and not on whether a particular pair fits: nothing is measured, so two cards of the same width always show the same form. That is why names too long for a wide slot are shortened one by one rather than switched to the word.

Bar

Case Behaviour
Both values present A double-sided bar, each side filled from its own cap
Values that do not reach 100 together The gap stays in the middle
One value absent That side has no fill and no number; its cap and label still show
Both values absent An empty double-sided track with both caps and labels
Comparison present Passed to the bar unchanged

Labels are always on: each pole is named under its own cap.

The frame at the top of this page shows its comparison example without numbers. It predates the rule on values next to a comparison in the universal axis and is to be redrawn.

Rules and constraints

  • The module adds nothing to the bar's own rules. Value placement, hidden small values, the marker and the comparison band behave exactly as the universal axis specifies.
  • A narrow lead is still a lead. 51 against 49 names a side; the marker is what shows how narrow it is.
  • The module never hides itself.

Invalid and edge input

Input Behaviour
Value outside 0-100 Clamped by the bar. The lead uses the clamped values
Values that exceed 100 together Scaled by the bar. The lead uses the values as given
Value not a number Treated as absent
Orientation name missing Its label row stays reserved and empty. If it leads, the chip shows the image alone. On a tie the chip shows the word for a tie, see Title
Orientation names longer than the room Each label is truncated by the bar, a title with a lead by the wrapper; both stay complete for assistive technology. On a tie each name is truncated on its own, see Title
Orientation without a colour The neutral fallback, on the chip and on the bar
Both poles are the same orientation Drawn as given. The module does not check the pairing

Nothing here throws.

Non-functional

Rendering contexts

The result screen, comparison mode and the generated result image. In the image the caller passes no actions.

Accessibility

  • The card is named after the leading orientation, or after both poles on a tie, through the accessible name the wrapper takes for a component title. On a tie with a pole name missing the card is named with the word for a tie, like the chip, so it is never announced as one pole alone or left without a name.
  • The bar announces both orientations, both values and the comparison value, as the universal axis specifies.
  • The lead is never carried by colour alone: the title says it in words.

Dependencies

Build order: step 1. Needs the universal axis and the module wrapper, both built. It can be built alongside the single axis chart, traits and the header.
